Cloud Control
Design System

A delivery-ready visual language for vehicle dispatch, roadside devices, maps, video, status, and control actions. The specifications are grounded in actual Lanhu annotations and 1×/2× exported assets; retrospective recommendations are identified separately.

1920 × 1080Web reference canvas

1321× / 2× exported assets

3 setsVehicle · roadside · video modal

3 typefacesInformation · actions · display

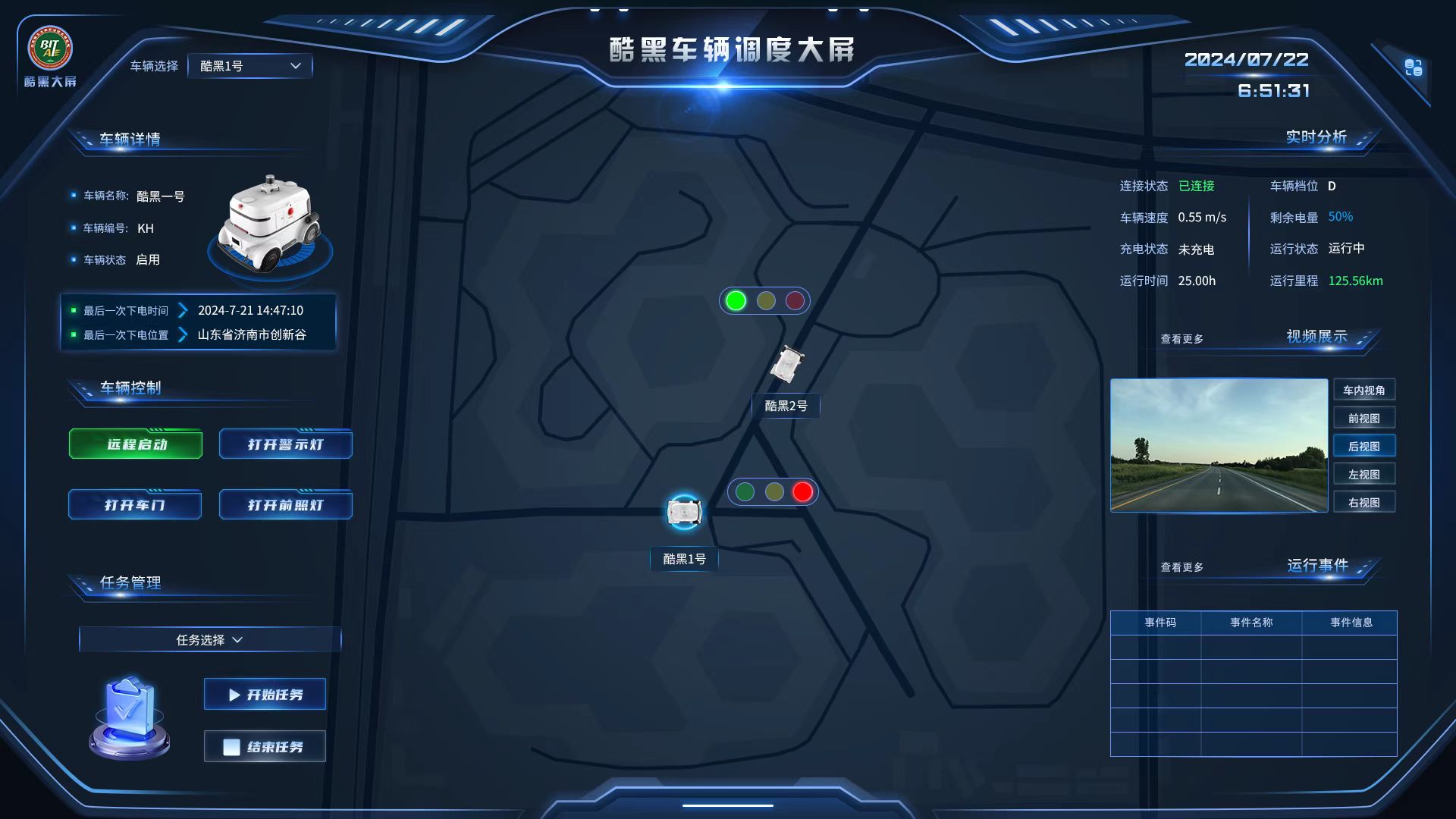

Delivered vehicle dispatch dashboard. The specification separates complex decorative assets from editable information layers.

01 / COLOR TOKENS

Darkness is not the goal.
State recognition is.

Blue-black surfaces reduce environmental distraction, bright blue defines interactive boundaries, and green, yellow, and red are reserved for operational states. The following values come from exact Lanhu annotations and exported pixels.

Canvas#081020Dark dashboard base

Modal Surface#00093AFive-camera modal

Primary Line#4794FFSelection, borders, title bars

Modal Line#7EB0FF2 px modal inner border

Label#A8CBFF14 px field labels

Info#04A3FFCritical real-time values

Success#36FF7DConnected and operating

Danger#FF5656Stop, exception, danger

02 / TYPOGRAPHY

Information and actions
use different voices.

Information text remains stable and clear, while critical actions and dashboard titles use stronger display type. Decorative module frames can remain raster assets, but content text should be implemented as editable HTML.

SampleTypefaceSizeUse

Vehicle Dispatch Dashboard HYk2gj38 pxDashboard title with white-to-blue highlight

REMOTE START YouSheBiaoTiHei20 / 32 pxControl buttons and short actions

125.56 km SourceHanSansCN-Regular16 pxCritical values, states, and object data

Vehicle Name: SourceHanSansCN-Regular14 pxField labels and table headers

Original Lanhu annotation: the “Vehicle Name” label uses SourceHanSansCN-Regular at 14 px / #A8CBFF; object value “KH” uses 16 px / #FFFFFF; the “Event Code” table header uses 14 px / #CDDFFF.

03 / CANVAS & LAYOUT

Stable side regions,
spatial context at the center.

Vehicle dispatch and roadside-device screens share one structure: objects and controls on the left, maps and positioning at the center, and status, video, and event feedback on the right.

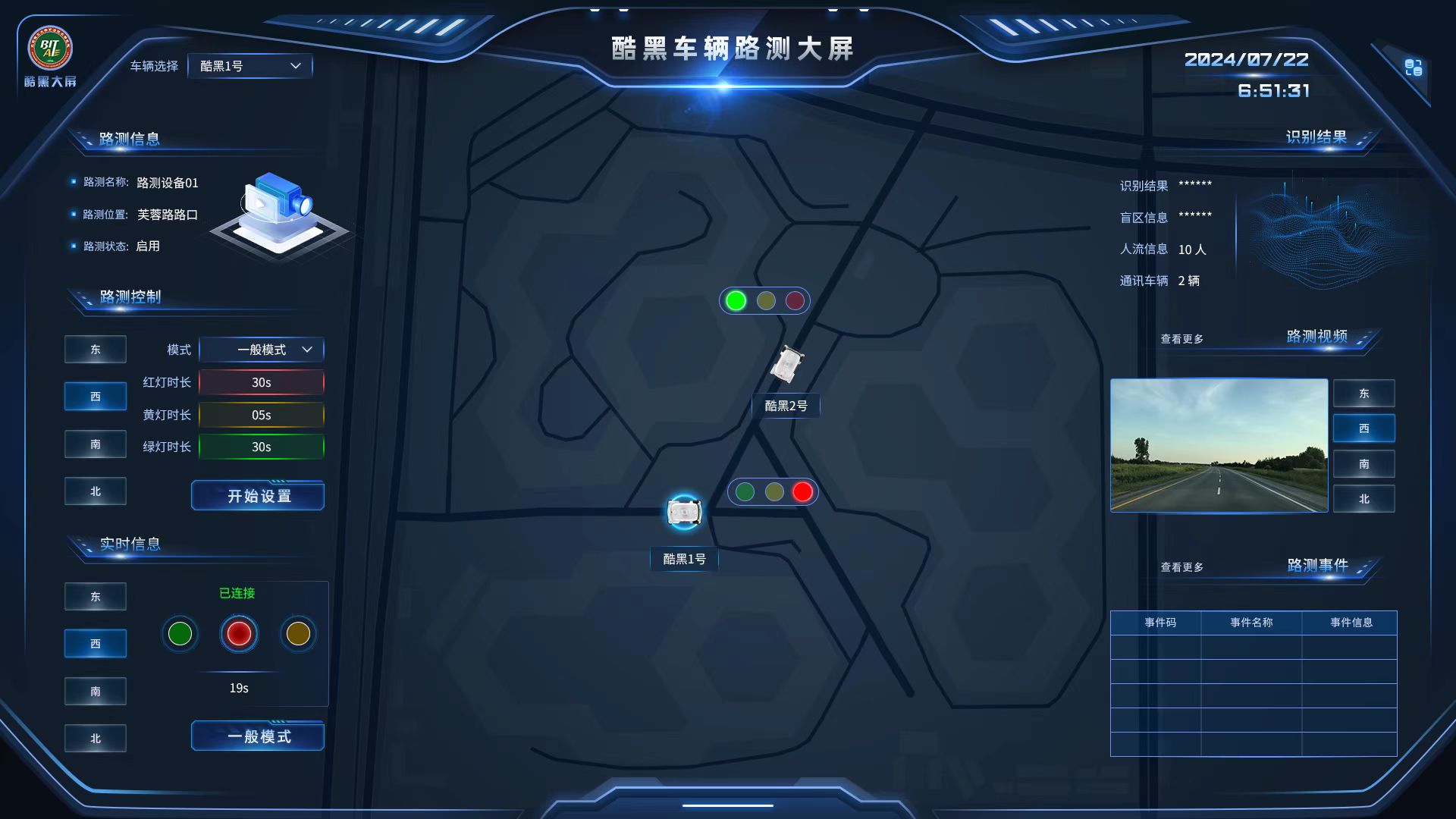

Roadside-device dashboard layout example

OBJECT + CONTROL

MAP + LOCATION

STATUS + FEEDBACK

ObjectPositionSizeEvidence

Dashboard titlex796 / y46339 × 37Lanhu annotation

Vehicle selectorx247 / y70166 × 342 px / r2

Module-title framex43 / y150391 × 59PNG asset

Full-width header framex0 / y01920 × 2231× / 2×

Side framesx0 / y0692 × 10801× / 2×

04 / COMPONENTS

Components define more than appearance.
They define states and delivery.

These components come from actual exported assets. The specification records both original dimensions and engineering recommendations, so editable text is not embedded in large raster images.

Base Control

166 × 34 px; 2 px border; 2 px radius. Used for selectors and basic actions.

Success Action

184 × 46 px. Green is reserved for confirmed, permitted, and successful states.

Danger Action

Used for stop and exception states, with explicit copy and secondary confirmation.

Status Indicators

53 × 54 px. State labels accompany color so meaning is never color-only.

Functional Icons

Switch: 42 × 42; play: about 31 × 32; close: 28 × 28. Delivered as transparent PNG assets.

Information State

Used for current modes and informational selections, separate from danger and success states.

05 / FIVE-CAMERA MODAL

Five camera feeds on demand,
without occupying the main view.

The original Lanhu modal uses three feeds above and two below. Detailed observation moves into the modal, while the main dashboard retains one preview and an entry point.

06 / ASSET DELIVERY

Separate decorative assets,
code components, and state data.

The original project included complete 1×/2× exports. This retrospective organizes them into maintainable engineering-delivery rules.

KEEP AS ASSET

Keep as PNG Assets

Complex glow and transparent decorative frames
Vehicle, roadside-device, and pedestrian graphics
Status indicators and complex light effects
Textures that cannot be reproduced reliably in CSS
Export Web @1x and @2x versions

BUILD IN CODE

Build in Code

Body copy, values, states, and table text
Solid backgrounds, standard borders, and radii
Tables, lists, selectors, and modal layouts
Disabled, loading, hover, and focus states
Object selection and map-linked behavior

Evidence boundary: original dimensions, typefaces, color values, and version dates on this page come from the available Lanhu project. Recommendations such as an 8 px grid, code-rendered text, nine-slice scaling, and accessible state treatment were added during the portfolio retrospective and are not presented as a formal system that existed at the time.
